Our Service

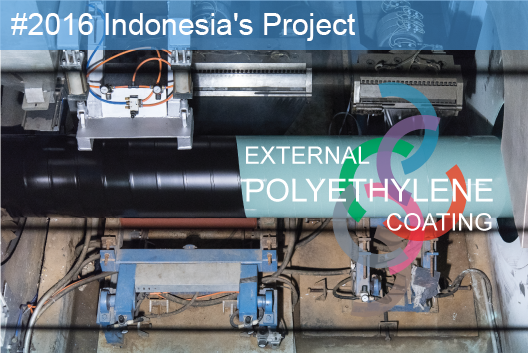

External Polyethylene Coating #2016
Plant Capability
- Nominal Pipe Size: 4’’/114.3mm - 48’’/1219mm
- Pipe Length : 6m - 18m
Typical Standards & Specifications
- CSA Z245.21 (2014)
- DIN 30670 (2012)
- ISO 21809-1 (2011)
- ISO 21809-4 (2009)
- NFA 49-710 (1992)
- GB/T 23257 (Chinese 2009)
- DEP 31.40.30.31 (SHELL 2011)
- GS EP COR 220 (TOTAL Rev.08)

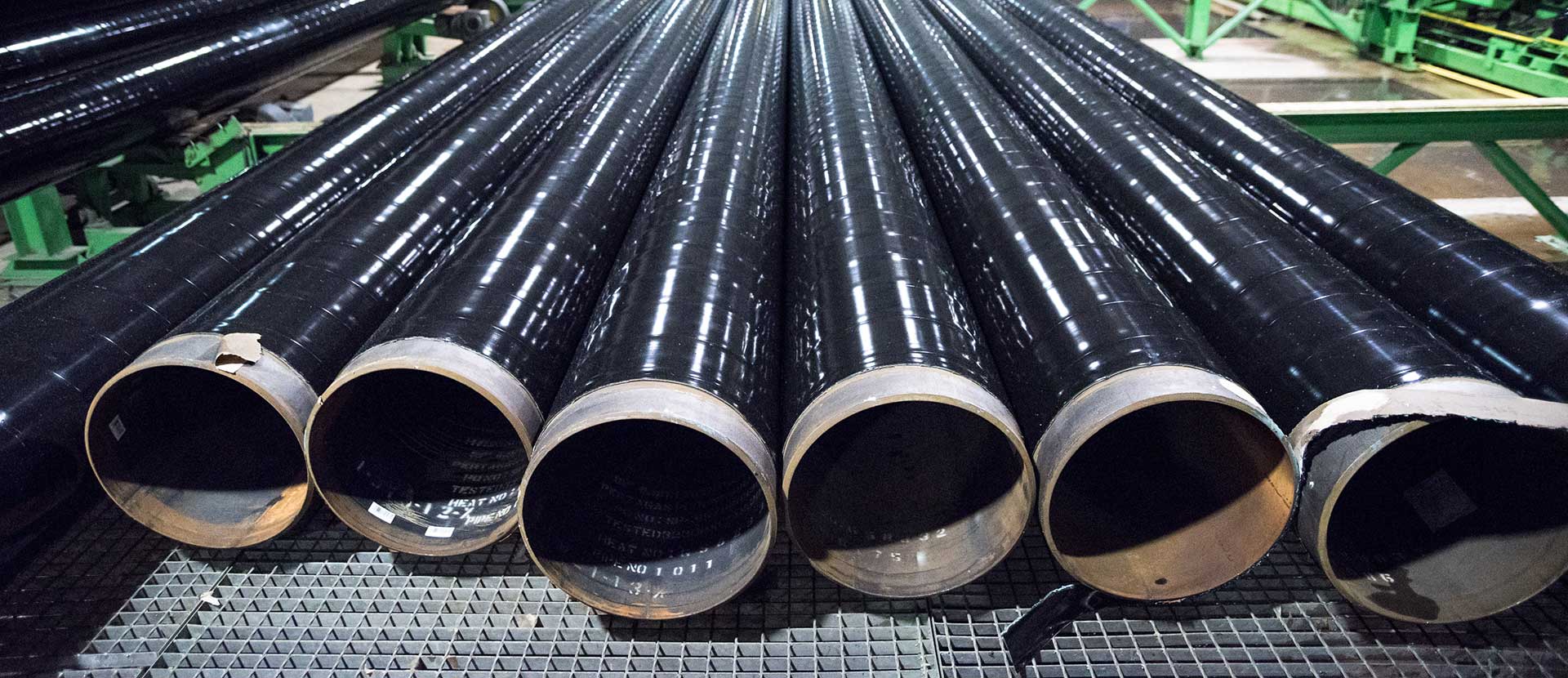

Three Layer Polyethylene Coating (3LPE)
External polyethylene coating is a plant-applied coating system applied externally to provide excellent anti-corrosion protection for steel line pipes and fittings, intended primarily for buried or submerged service for water or oil and gas pipeline system, including two-layer (2LPE) and three-layer (3LPE) coating systems, whereby a copolymer adhesive is interposed between a bare substrate or high performance fusion bonded epoxy and the outer layer of polyethylene which provides mechanical protection at moderate operating temperature.
