Our Service
Internal Liquid Epoxy Coating #2016
Plant Capability
- Nominal Pipe Size: 4’’/114.3mm - 48’’/1219mm
- Pipe Length : 6m - 18m
Typical Standards & Specifications
- GS EP COR 250 (TOTAL)
- API RP 5L2 (2002)
- EN 10339 (2007)
- ISO 15741 (2001)
- DEP 31.40.30.35 (Shell 2005)
- AWWA C210 (2007)
Internal Liquid Epoxy Coating

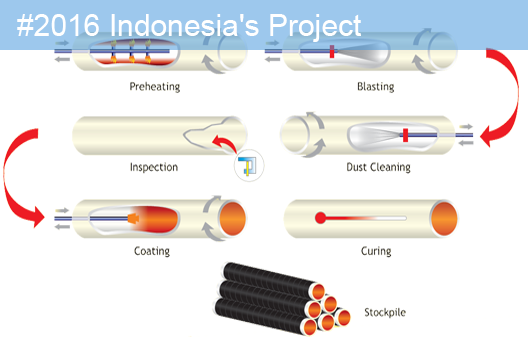

Internal liquid epoxy coating (ILEC) is a plant-applied liquid coating internally applied by using either airless spray or conventional air spray technique to blast cleaned line pipe to minimize the friction resistance of flow and provide appropriate corrosion protection for the onshore and offshore pipe, intended primarily for buried or submerged service for water or oil and gas pipeline system.
